Capabilities

Site testing and earthworks QA

Site testing, surveyed positions, construction layers, drawings and surface comparison in one Field and Office platform.

Fictional demonstration project.

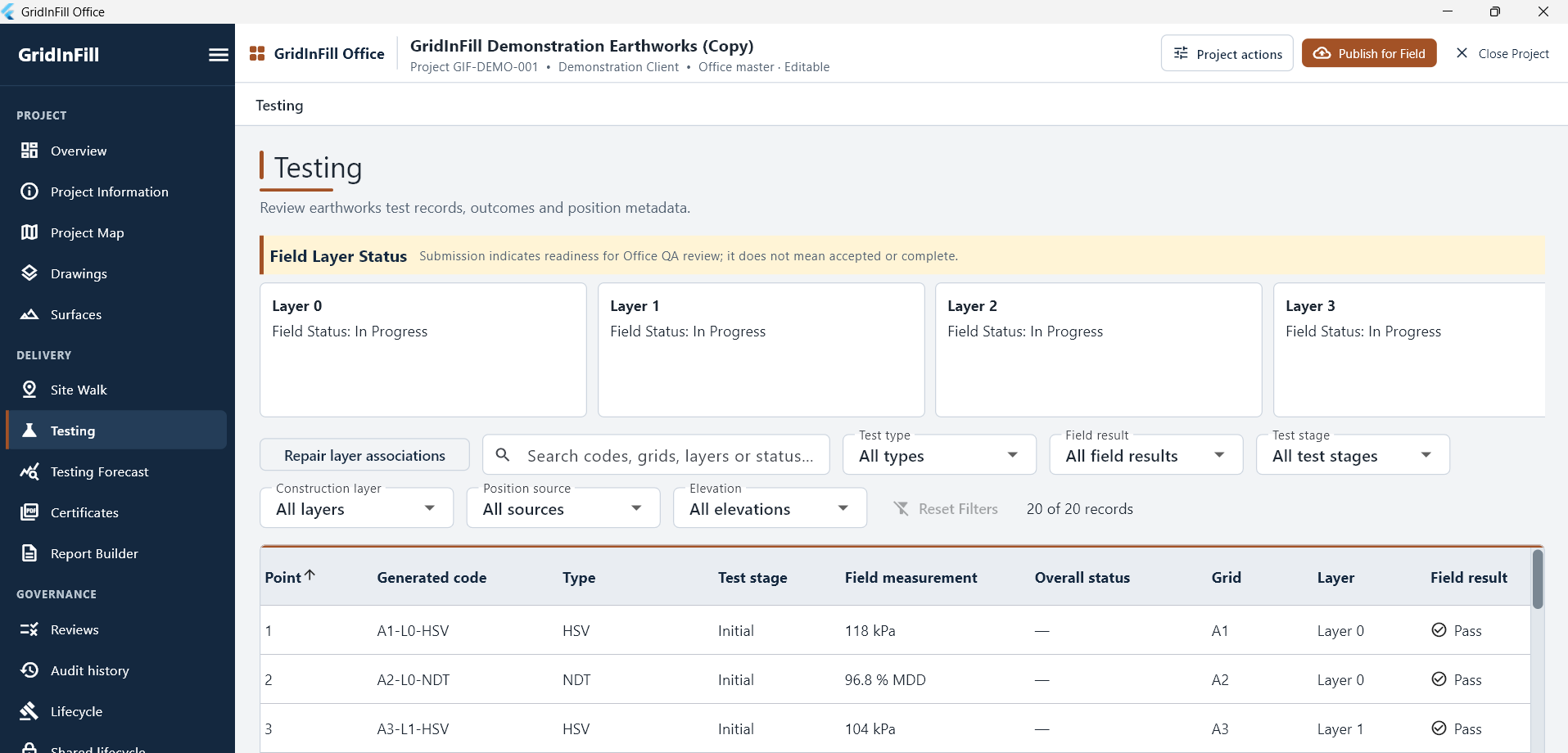

Testing register

Office holds the site testing record for the project in one place.

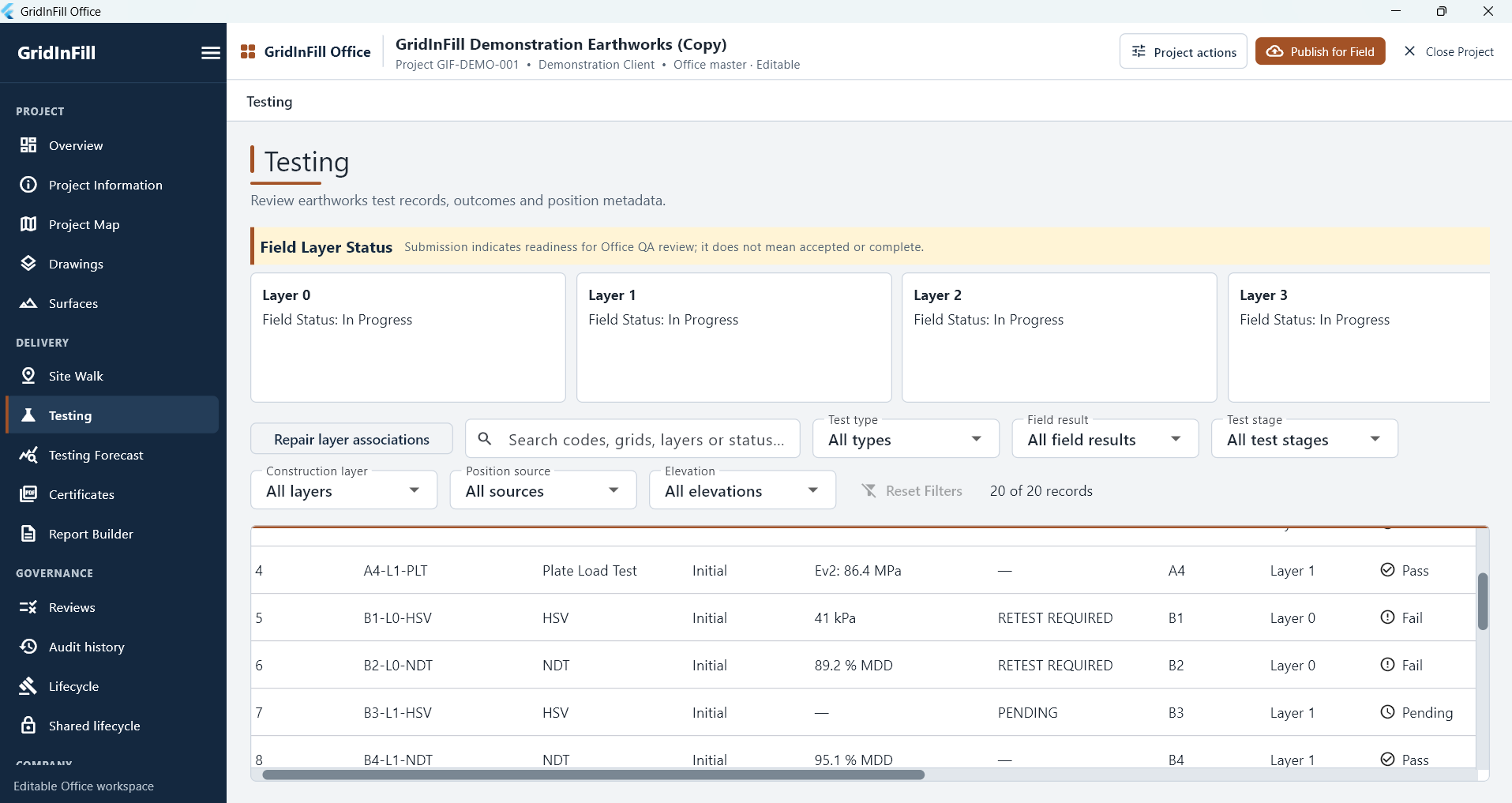

Shows pass, fail, pending and retest outcomes for the recorded tests.
Brings the test code, measurement and construction layer into one row.

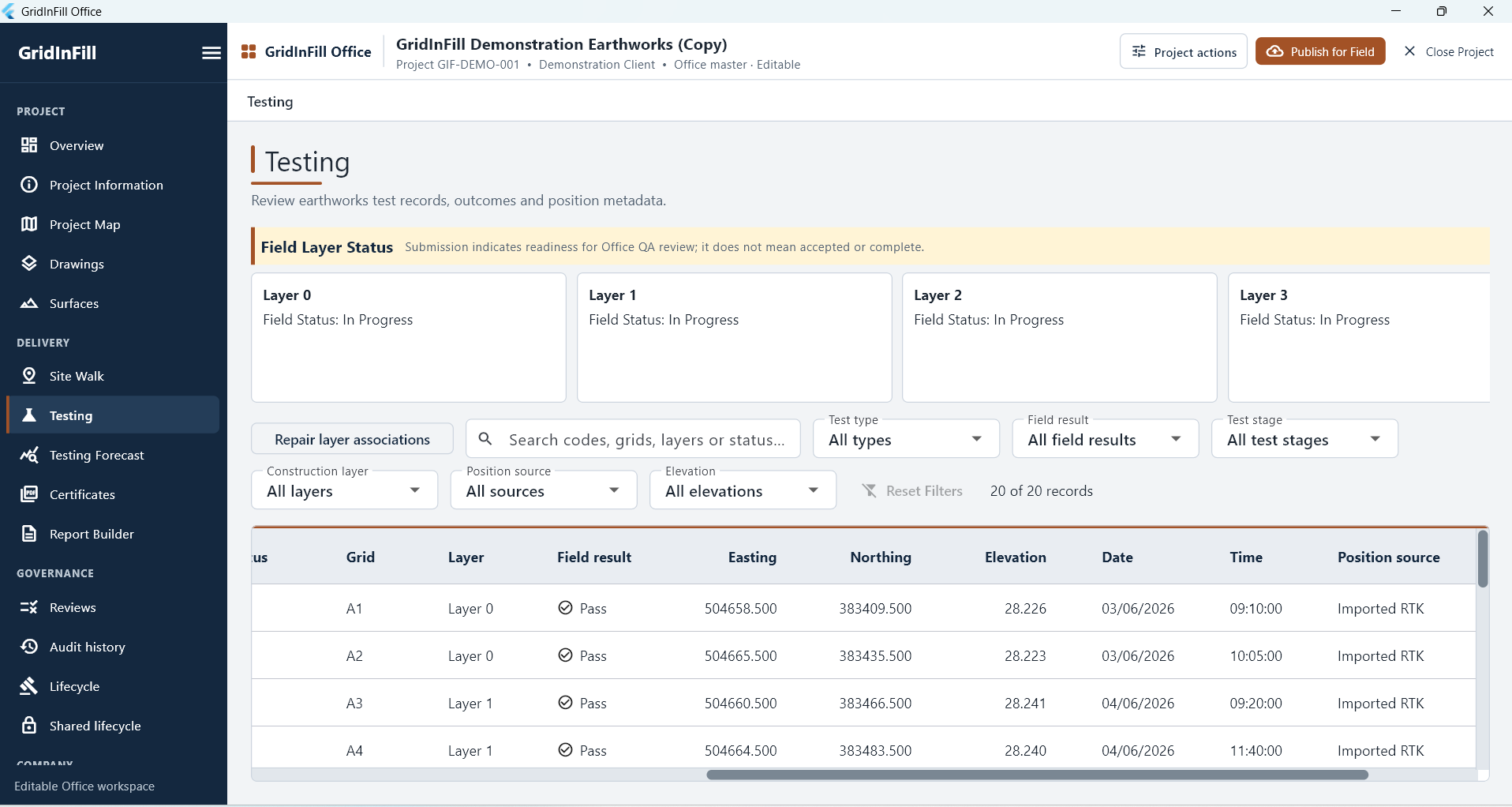

Adds the survey coordinate, elevation and position source to each record.

Testing specifications

Specifications are stored with the project and included in Field project packages.

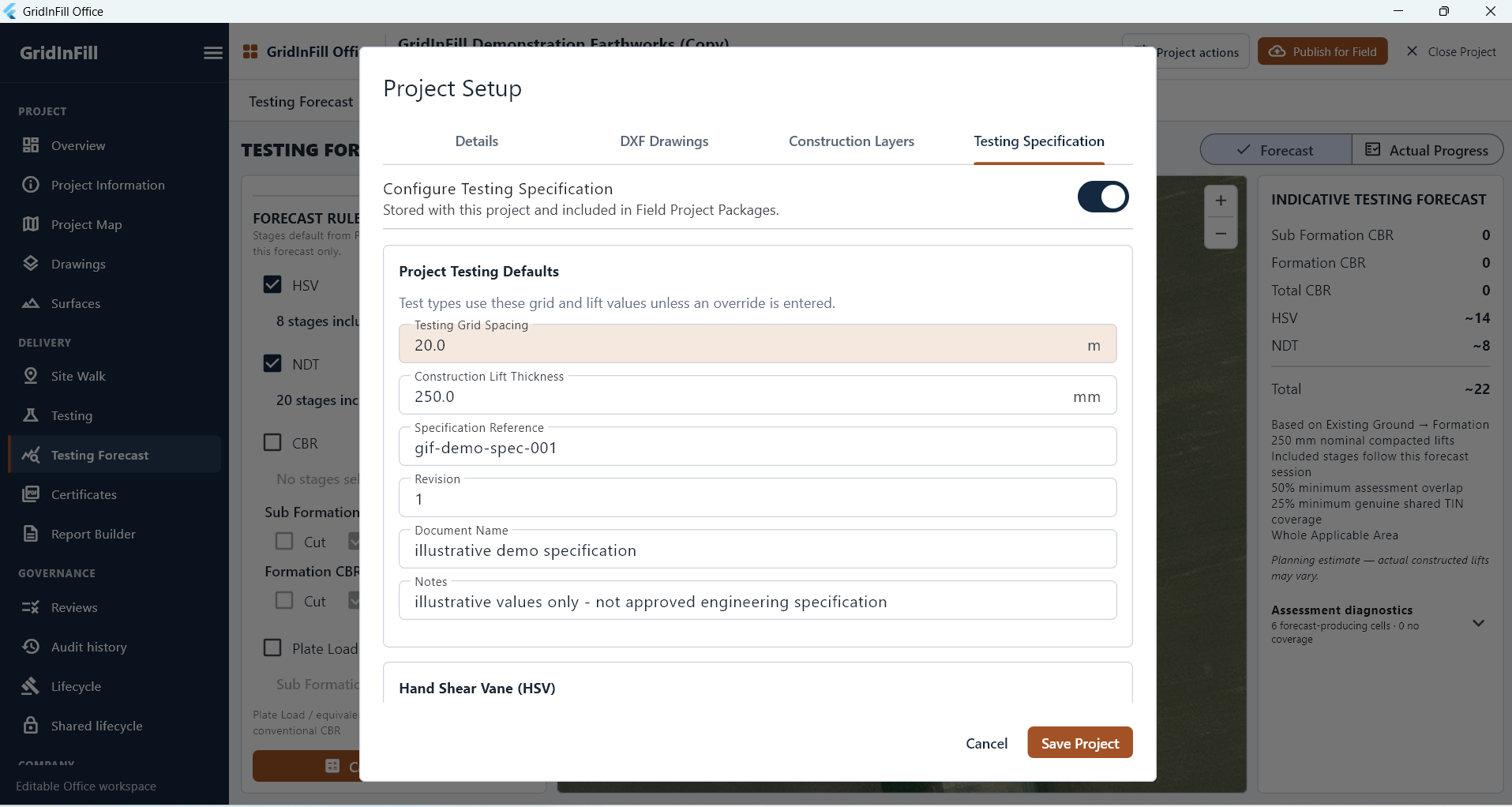

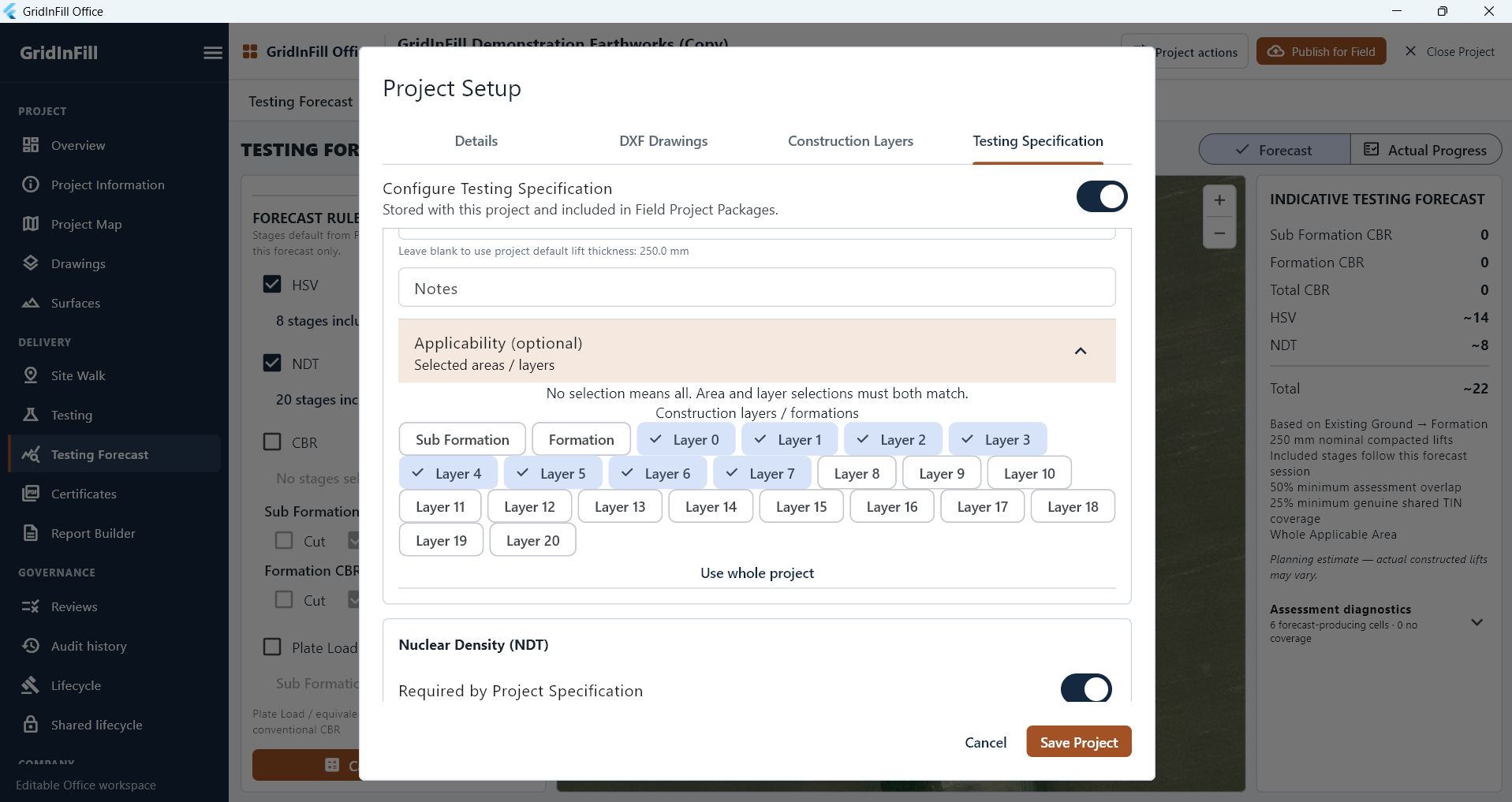

Sets the testing grid, lift thickness and specification reference for the project.

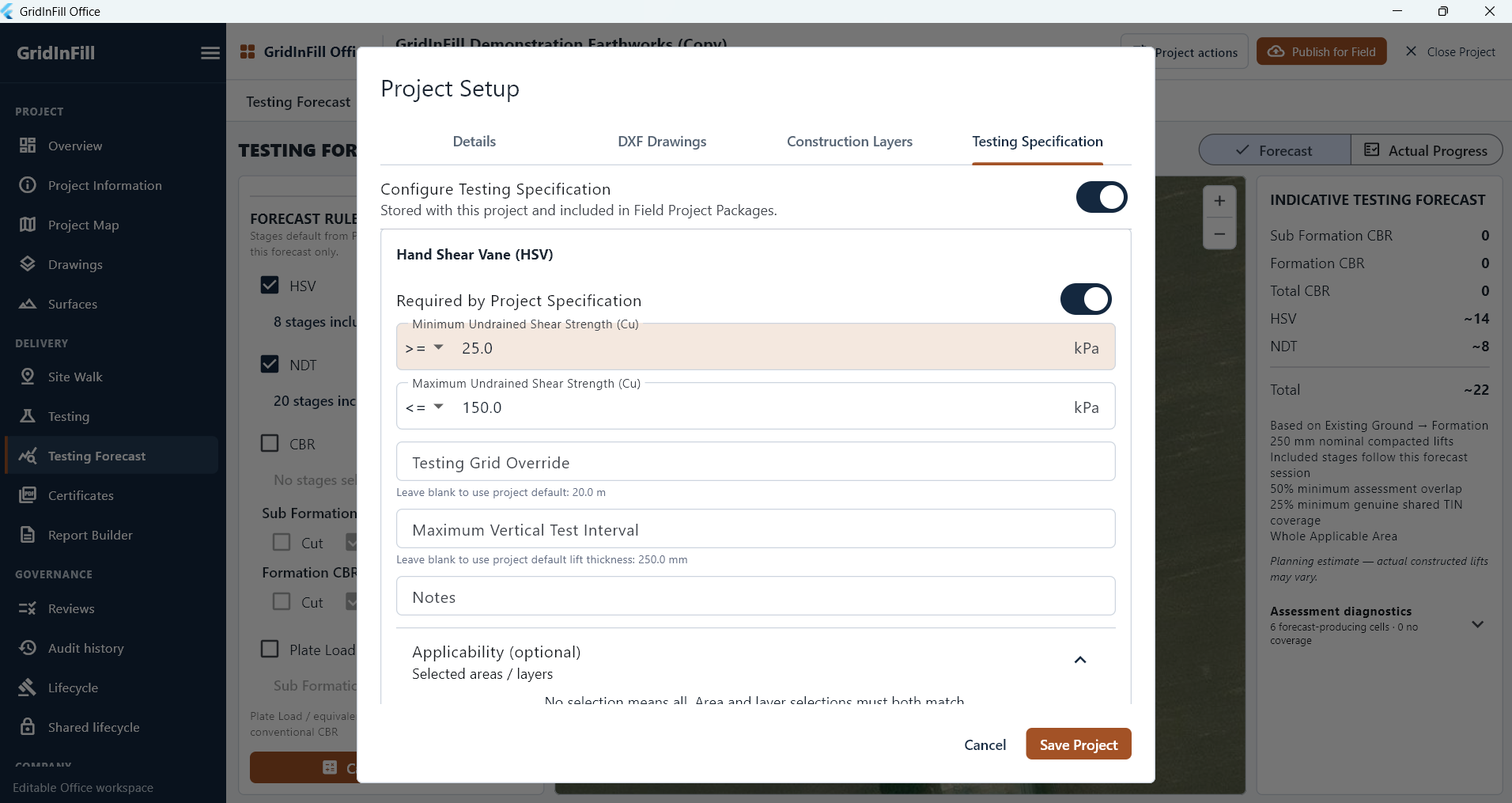

Defines the acceptance criteria used to assess each required test.
Selects the construction layers and areas where each testing rule applies.

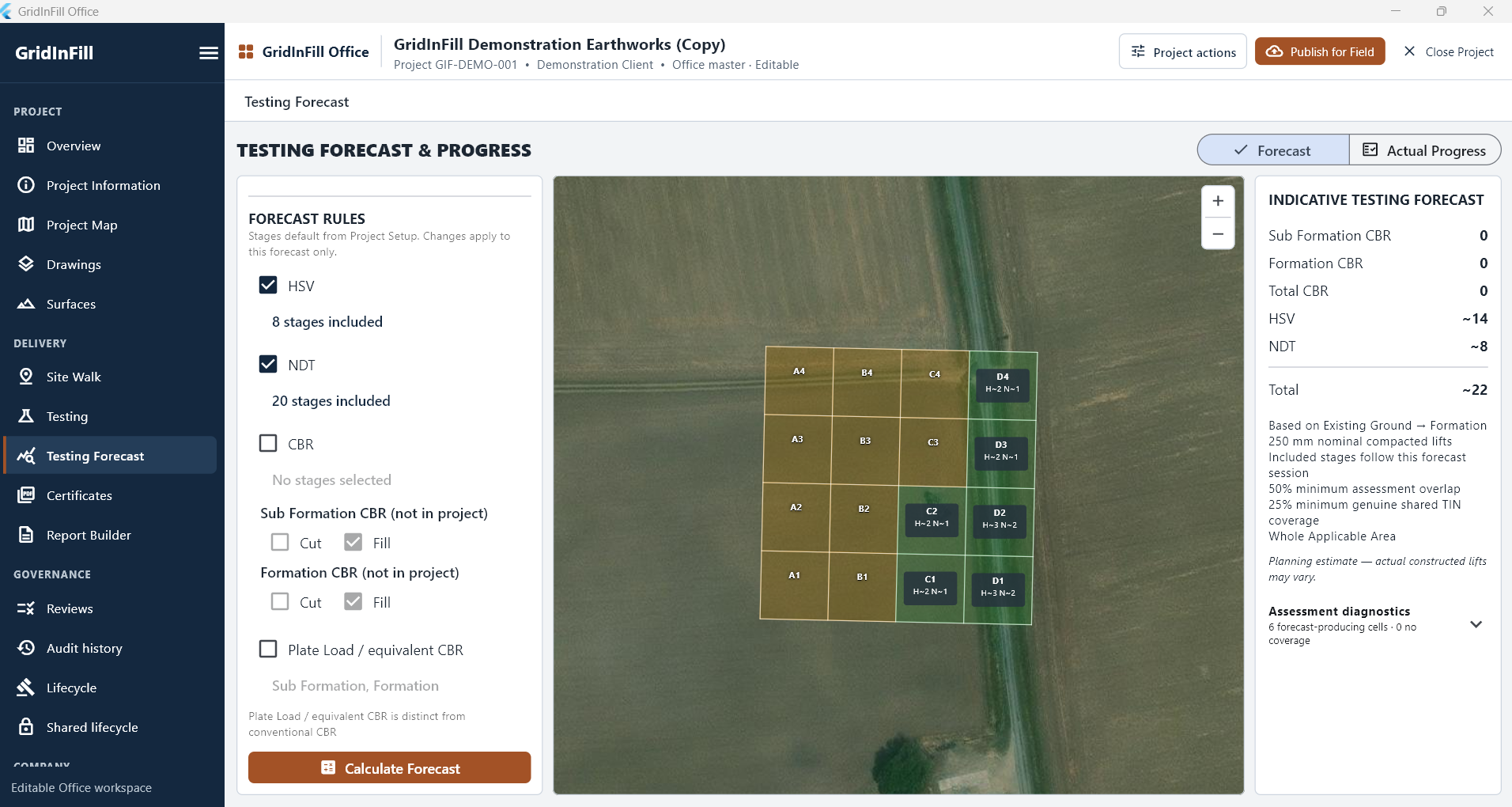

Testing forecast

Plan the testing a project will need before work moves across the site.

Estimates testing requirements across construction layers and grid locations using project specifications and surface data.Map image is the intellectual property of Esri and is used herein under license. Copyright © 2026 Esri and its licensors. All rights reserved. Source: Esri, Vantor, Earthstar Geographics, and the GIS User Community.

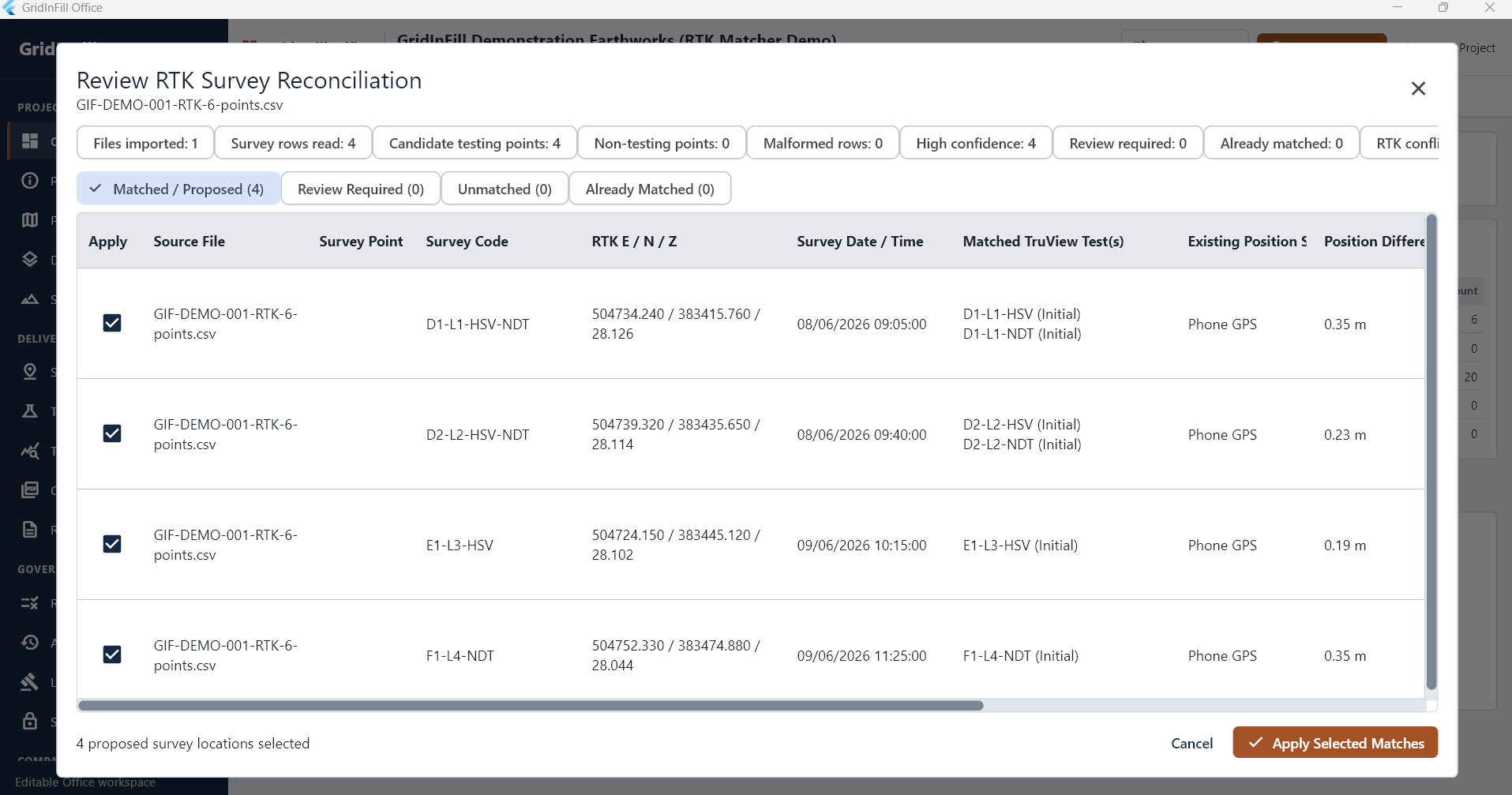

RTK survey reconciliation

Bring the survey file and the field records together before a position is updated.

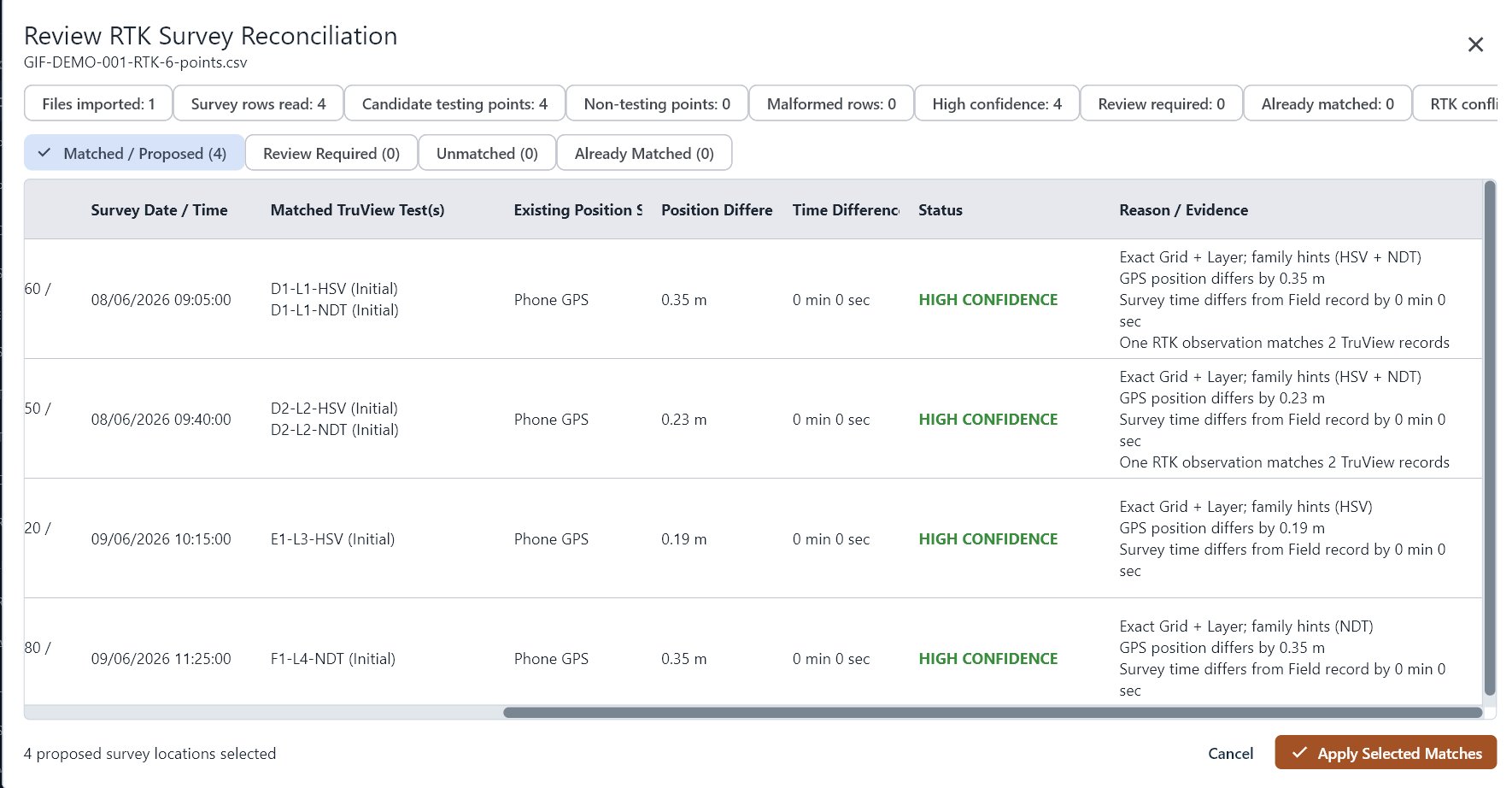

Matches surveyed RTK coordinates and elevations to recorded site tests, including multiple tests at one location.
Shows how a surveyed point is proposed against the tests recorded at that location.

Cut and fill volumes

Use the project surfaces to see where the ground is being cut or filled.

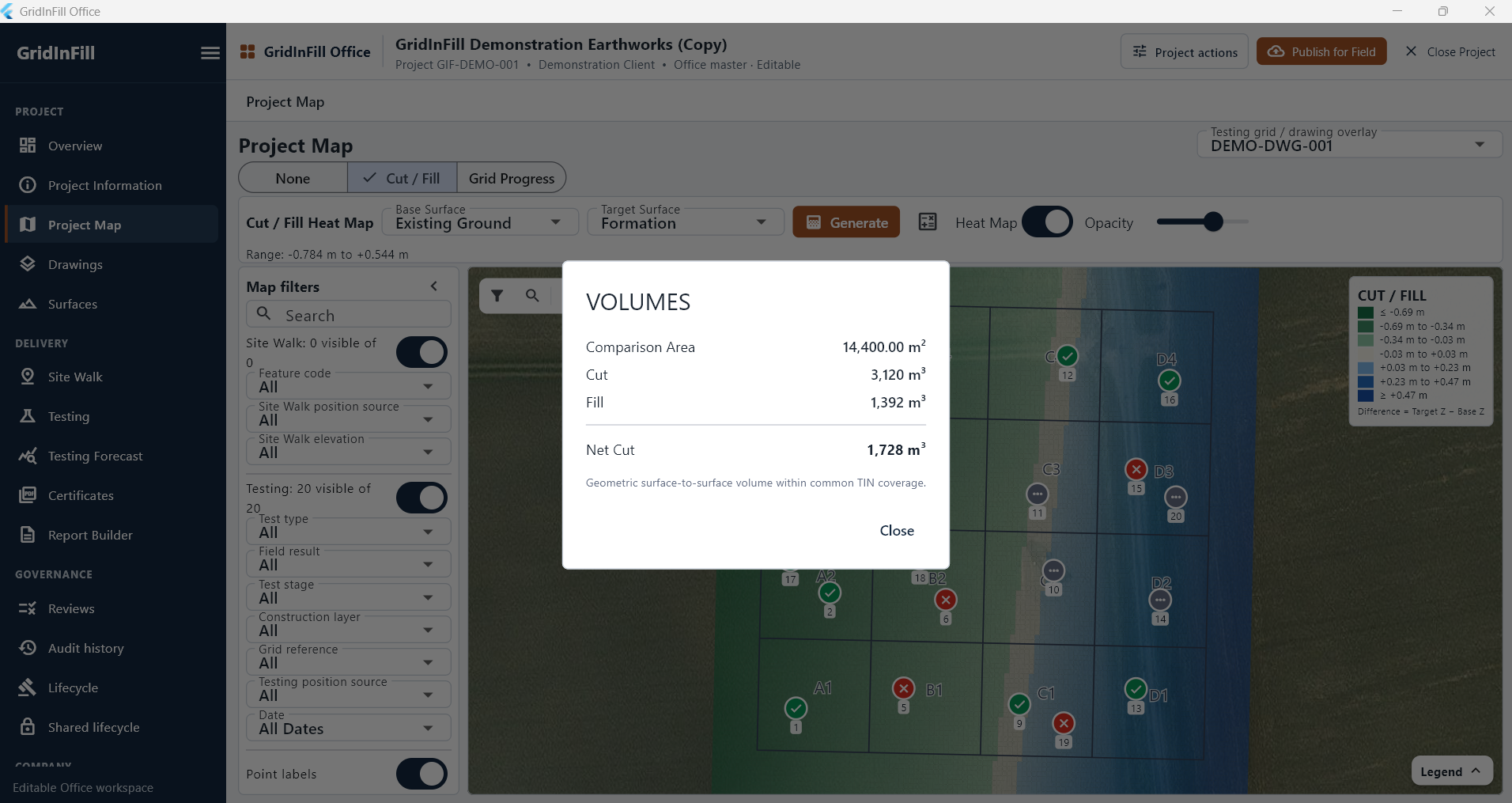

Calculates cut, fill and net earthworks volumes by comparing existing and proposed surfaces.Map image is the intellectual property of Esri and is used herein under license. Copyright © 2026 Esri and its licensors. All rights reserved. Source: Esri, Vantor, Earthstar Geographics, and the GIS User Community.

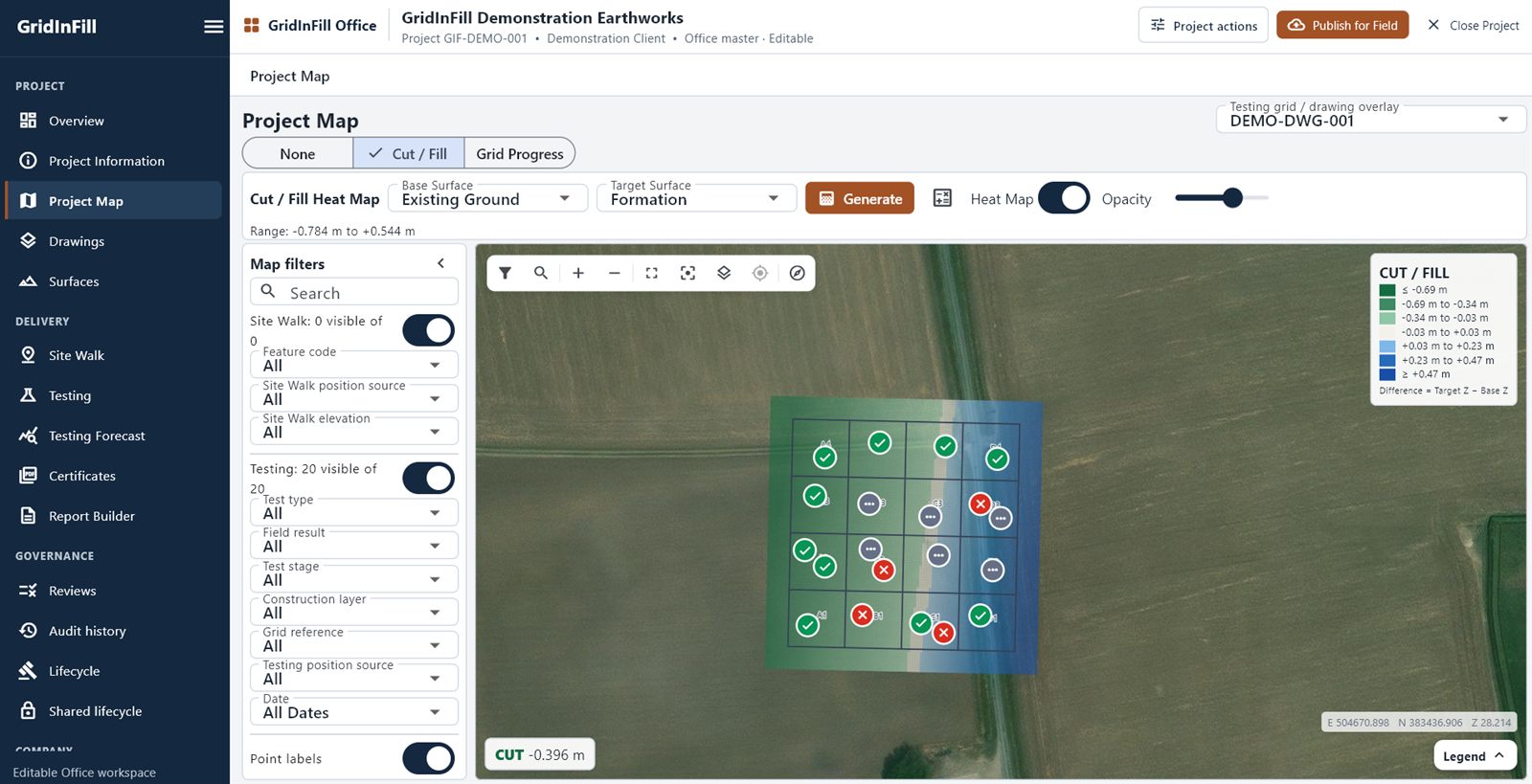

Highlights cut and fill differences between surfaces using a colour-coded map.Map image is the intellectual property of Esri and is used herein under license. Copyright © 2026 Esri and its licensors. All rights reserved. Source: Esri, Vantor, Earthstar Geographics, and the GIS User Community.

Field testing

Take the project record onto site with GridInFill Field.

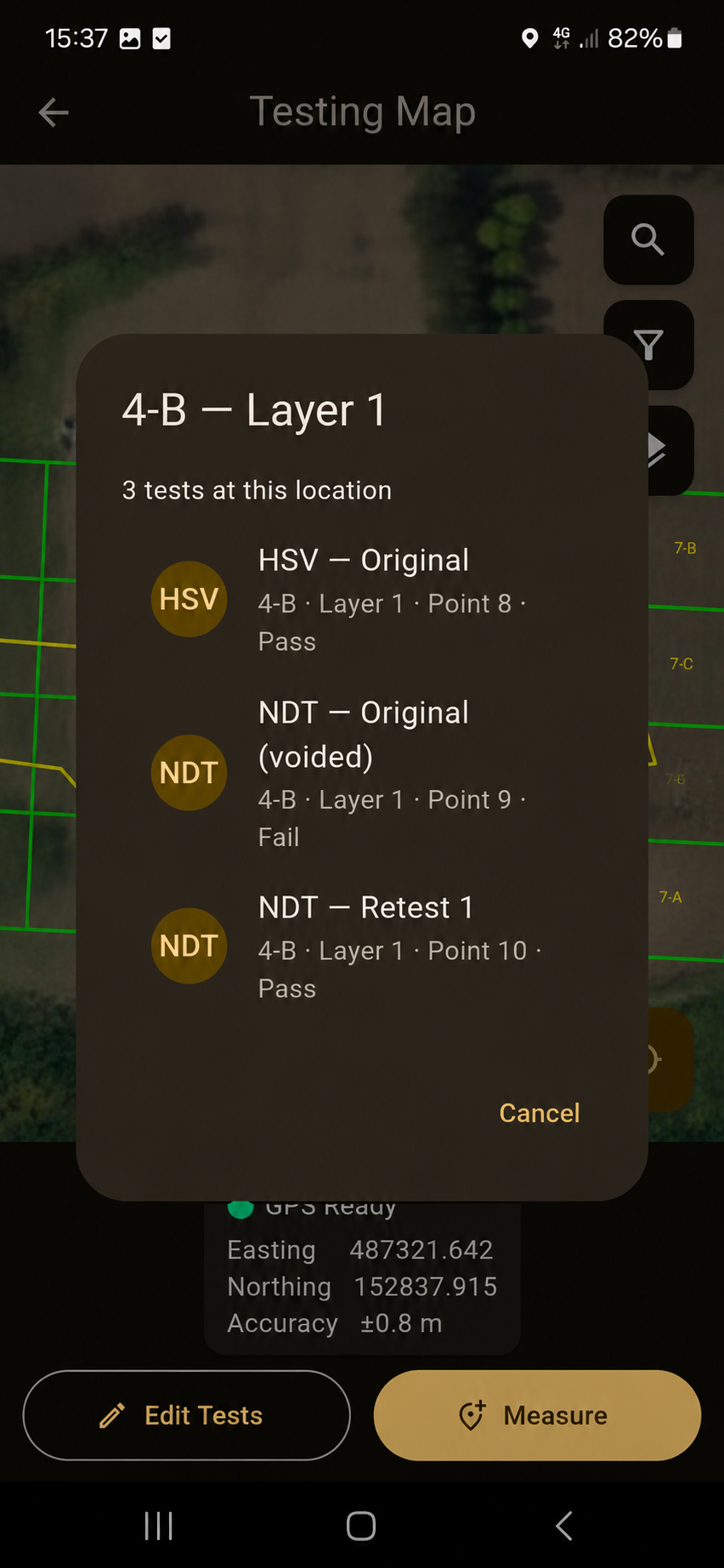

Shows where tests have been recorded on the construction grid.

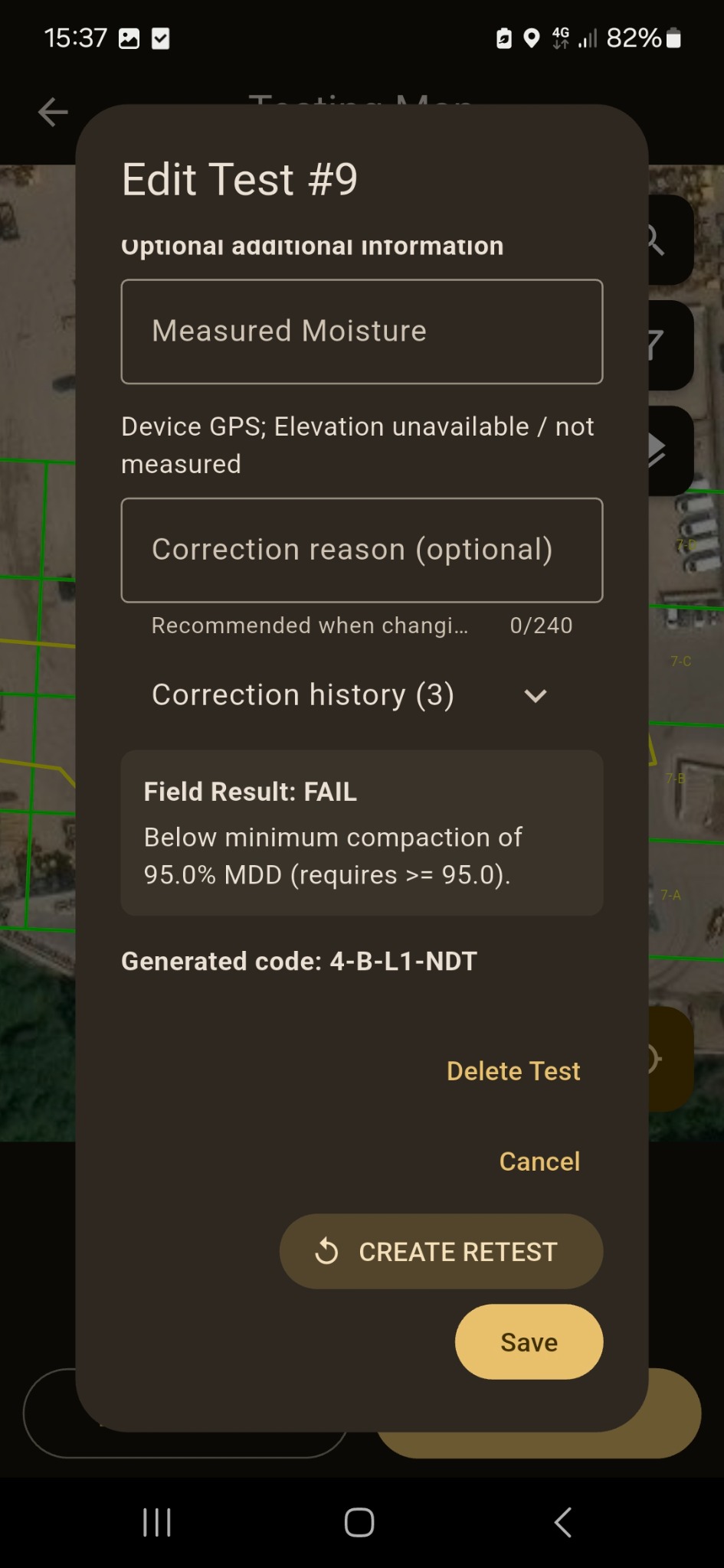

Records site test results, identifies failures and manages retesting directly from the field.

Drawings

Keep the construction drawing with the rest of the project record.

Displays drawings, survey information, testing locations and construction progress on an interactive map.Map image is the intellectual property of Esri and is used herein under license. Copyright © 2026 Esri and its licensors. All rights reserved. Source: Esri, Vantor, Earthstar Geographics, and the GIS User Community.

See the workflow

Request a demonstration, or start a commercial partnership enquiry.
